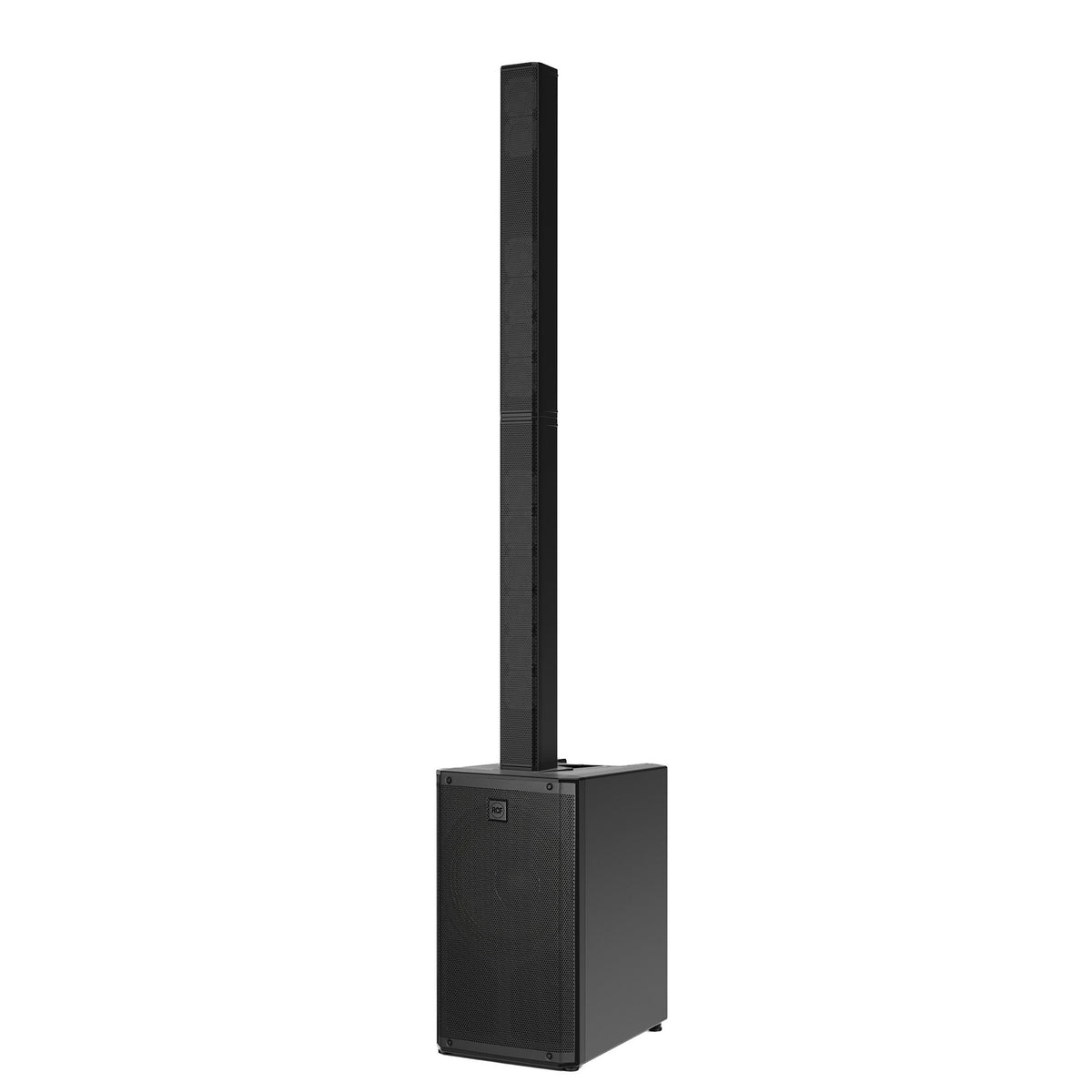

RCF EVOX-J11 Active 3500W 12-Inch Three Way Column Array PA System
RCF EVOX-J11 Active 3500W 12-Inch Three Way Column Array PA System The RCF J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. Part of the EVOX J Series, it delivers wide, consistent coverage...
PRODUCT DETAILS
Everything you need to know.
RCF EVOX-J11 Active 3500W 12-Inch Three Way Column Array PA System
The RCF J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. Part of the EVOX J Series, it delivers wide, consistent coverage with a touring-grade acoustic design that supports crystal-clear vocals and natural musical response for professional live sound.
A 1.75 inch compression driver on a 120° × 40° True Resistive Waveguide ensures even dispersion, while 12 × 3 inch full-range neodymium transducers and a high-power 12 inch woofer in a bass-reflex enclosure produce articulate mids and deep controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier with built-in DSP, the J11 delivers up to 132 dB Max SPL output for demanding performances.
Built for straightforward setup and reliable performance, the J11 features a composite cabinet with an aluminum stand mount and a sleek, road-ready form factor. It is an ideal solution for bands, DJs, and live performers who need powerful sound reinforcement with strong coverage and a clean stage presence.
Key Features
- High output performance: Delivers up to 132 dB Max SPL for professional live sound.
- Powerful amplification: 3500 W Class-D amplifier with built-in DSP processing.
- Wide coverage waveguide: 120° × 40° True Resistive Waveguide for consistent dispersion.
- Neodymium driver array: 12 × 3 inch full-range neodymium transducers for detailed mids.
- Deep low-frequency response: 12 inch RCF precision woofer in a bass-reflex enclosure.
- Road-ready design: Composite cabinet with aluminum stand mount and included padded carrying bag.
Technical Specifications
Frequency Range37 Hz - 20000 Hz
Max SPL @ 1m
132 dB
Horizontal Coverage Angle
120°
Vertical Coverage Angle
40°
Compression Driver
0.75’’ neo, 1.75’’ v.c
Fullrange
12 x 3.0’’ neo, 1.0’’ v.c
Woofer
12’’, 2.5’’ v.c
Input Signal
bal/unbal
Input Connectors
XLR, Jack
Output Connectors
XLR
Input Sensitivity
-2 dBu/+4 dBu
Crossover Frequencies
160/1600 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume. Presets: Linear, Live, Club, Voice
Total Power
3500 W Peak
High Frequencies
1500 W Peak
Low Frequencies
2000 W Peak
Connections
PowerCON TRUE1 IN/OUT
Cabinet/Case Material
PP Composite
Handles
1 Top
Grille
Steel
Height
2080 mm / 81.89 inches
Width
350 mm / 13.78 inches
Depth
462.6 mm / 18.21 inches
Weight
29 kg / 63.93 lbs
Available Variations
The RCF EVOX J11 is available in six configurations, offered in black or white finishes. Each color option is available as a complete system or as individual replacement components.
EVOX-J11 (Black, Full System)
Includes top column speaker, powered subwoofer, aluminum stand and spacer system, and padded carrying bag for the top column speaker.
EVOX-J11 (Black, Top Only)
Column array speaker only. Does not include subwoofer, stand system, or accessories.
EVOX-J11 (Black, Sub Only)
Powered subwoofer only. Does not include top column speaker or stand components.
EVOX-J11-W (White, Full System)
Includes top column speaker, powered subwoofer, aluminum stand and spacer system, and padded carrying bag for the top column speaker.
EVOX-J11-W (White, Top Only)
Column array speaker only. Does not include subwoofer, stand system, or accessories.
EVOX-J11-W (White, Sub Only)
Powered subwoofer only. Does not include top column speaker or stand components.
