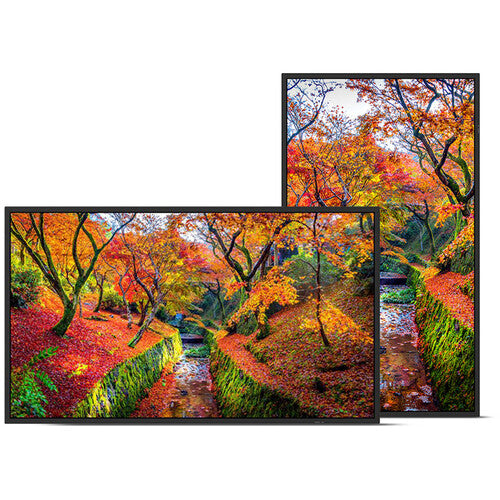

Sharp NEC PNE759 75-Inch 4K UHD Professional Display

Sharp NEC PNE759 75-Inch 4K UHD Professional Display

The Sharp NEC PNE759 75-inch 4K UHD professional display delivers detailed commercial visuals for meeting rooms, presentations, corporate communications, and digital signage. Its 3840 x 2160 IPS panel combines 350 cd/m² brightness, wide 178° viewing angles, and a professional 25% haze treatment that reduces distracting glare in brightly lit spaces.

Designed for organizations seeking a 75-inch commercial display with USB-C connectivity, the PNE759 supports streamlined meeting-room installations and standalone signage playback. Presenters can connect compatible HDMI or USB-C sources, while the integrated USB media player displays supported images, audio, and video without requiring a separate playback device. Landscape and portrait mounting support expands placement options for offices, retail environments, hospitality venues, and public-facing information displays.

The commercial-grade metal structure supports dependable 16/7 operation, while integrated scheduling and network management simplify larger installations. NaViSet Administrator 2 provides remote display administration over LAN, and RS-232C connectivity supports professional control systems. Integrated 10W + 10W speakers, HDMI ARC, CEC support, a powered USB port, and Q-SYS plug-in compatibility help the display integrate into modern professional AV environments.

Key Features

• 75-Inch 4K UHD Display: Presents detailed content at a native 3840 x 2160 resolution.
• Professional IPS Panel: Delivers consistent image quality with 178° horizontal and vertical viewing angles.
• Anti-Glare Haze Treatment: Uses a professional 25% haze level to reduce reflections in commercial spaces.
• USB-C Connectivity: Accepts UHD video, audio, USB 2.0 data, and up to 15W of connected-device power.
• Integrated USB Media Player: Plays compatible images, videos, and audio files directly from USB storage.
• Commercial Operating Schedule: Supports reliable 16-hour-per-day, seven-day-per-week use.
• Flexible Installation: Supports landscape or portrait orientation and a -20° to 20° tilt range.
• Remote Display Management: Enables network administration through LAN and NaViSet Administrator 2.

Technical Specifications

Display

• Product Type: 75-Inch Essential Large-Format Professional Display
• Panel Technology: IPS with Direct LED Backlighting
• Screen Size: 75"
• Active Screen Area: 64.96" x 36.54"
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160
• Pixel Pitch: 0.0169"
• Brightness: 350 cd/m²
• Contrast Ratio: 1200:1 Typical
• Viewing Angle: 178° Horizontal / 178° Vertical
• Color Depth: 1.07 Billion Colors, 8-Bit + FRC
• Response Time: 8 ms Typical
• Panel Refresh Rate: 60 Hz
• Haze Level: Professional, 25%
• Supported Orientation: Landscape and Portrait
• Supported Resolutions: 640 x 480, 720 x 400, 720 x 480, 720 x 576, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1400 x 1050, 1440 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200, 3840 x 2160, and 4096 x 2160
• Horizontal Frequency: 31.5 to 135 kHz
• Vertical Frequency: 24 to 75 Hz

Connectivity

• HDMI Input 1: UHD Video at 60 Hz, HDCP 2.2, Audio Input, ARC, and CEC
• HDMI Input 2: UHD Video at 60 Hz, HDCP 2.2, Audio Input, and CEC
• USB-A: USB 2.0, 4.5W Power, Peripheral Support, and USB Storage
• USB-C: UHD Video at 60 Hz, DisplayPort Alt Mode 1.2, HDCP 2.2, Audio Input, USB 2.0, and 15W Power
• Audio Output: 3.5mm Line Output
• LAN: 100 Mbps
• RS-232C: 9600 bps

Audio

• Integrated Speakers: 10W + 10W

USB Media Player

• Storage Interface: USB 2.0
• Supported File Systems: FAT16 and FAT32
• Supported Image Formats: Baseline or Progressive JPG in RGB or CMYK, Up to 15360 x 8640
• Supported Video Formats: MPG, MP4, TS, and WMV
• Supported Video Codecs: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, HEVC/H.265, and Windows Media Video 9
• Maximum Video Resolution: Up to 3840 x 2160 at 60 Hz for Supported MP4 and TS Files
• Supported Audio Formats: MP3, LPCM, AAC, WMA 9, and WMA 10 Pro
• Maximum MP3 Bit Rate: 320 Kbps

Power and Environmental

• Power Consumption: 170W
• Power-Saving Mode: Less Than 0.5W
• Networked Standby: Less Than 2W
• Power Supply: Internal 100–240V AC, 50/60 Hz
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 20% to 80%
• Storage Humidity: 10% to 80%
• Operating Hours: 16/7

Construction and Mounting

• Dimensions: 66.14" x 37.76" x 2.30"
• Weight: 52.91 lbs
• Bezel Width: 0.51", Symmetrical
• VESA Mounting Pattern: 23.62" x 15.75", Four M8 Mounting Holes
• Packaging Dimensions: 73.82" x 44.49" x 7.32"
• Packaging Weight: 72.75 lbs
• Construction: Metal Structure with Partial Plastic Covers
• Color: Black Front Bezel and Black Rear Cabinet

Management and Compliance

• Remote Management: NaViSet Administrator 2
• Control Features: Scheduler, CEC Support, HDMI ARC, Powered USB Port, and USB Media Player
• Third-Party Integration: Q-SYS Plug-In
• Safety and Compliance: FCC Class B, Energy Star 8.0, UL/C-UL or CSA, CE, RCM, UKCA, and VCCI
• Warranty: 3 Years Including Backlight

What's In the Box

• Sharp NEC PNE759 Professional Display
• Remote Control
• Two AAA Batteries
• Power Cable
• Setup Manual
