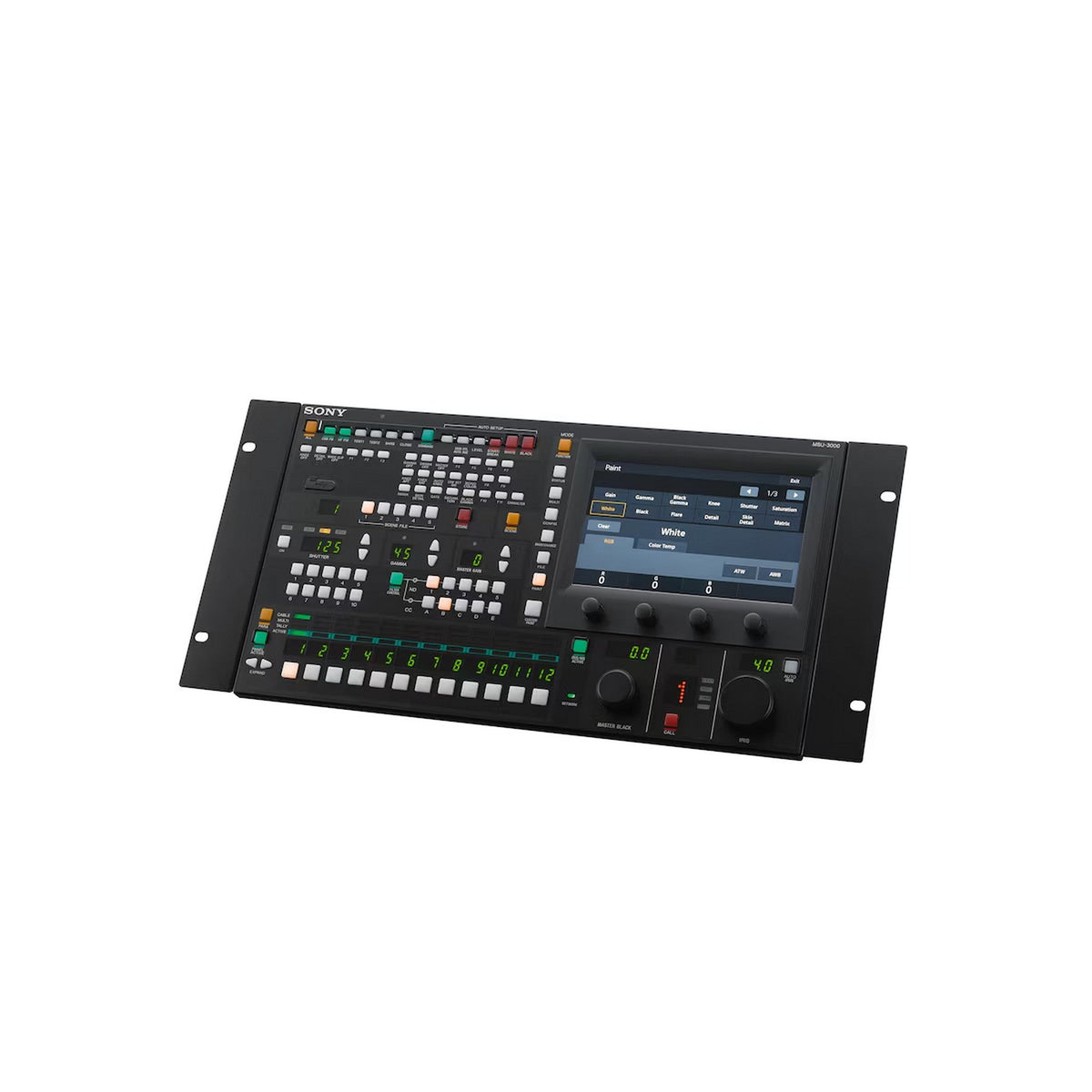

Sony MSU Master Setup Unit for 96 HDC Camera Systems - Horizontal
In stock SKU: SNY-MSU3000

ToneCraft Gear

Sony MSU Master Setup Unit for 96 HDC Camera Systems

$9,983.99

Sony MSU-3000 / MSU-3500 Master Setup Unit The Sony MSU-3000 (horizontal) and MSU-3500 (vertical) Master Setup Units are designed for advanced control of up to 96 HDC camera systems. The MSU-3000 fits a 19-inch EIA rack (full-rack-mount size), while the MSU-3500 is...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Sony MSU-3000 / MSU-3500 Master Setup Unit

The Sony MSU-3000 (horizontal) and MSU-3500 (vertical) Master Setup Units are designed for advanced control of up to 96 HDC camera systems. The MSU-3000 fits a 19-inch EIA rack (full-rack-mount size), while the MSU-3500 is built for a 9.5-inch EIA rack (half-rack-mount size). Both units offer flexible control with 7-inch WVGA displays and customizable buttons for managing camera settings and operational status.

Both models feature 1000BASE-T Ethernet connectivity, with USB flash drive support for saving and loading settings. The MSU-3000 has 21 assignable keys, and the MSU-3500 offers 3 keys for more compact control. Their compact designs and intuitive interfaces make them ideal for both large and small-scale productions, ensuring smooth operations even in high-demand environments.

Key Features

  • Supports up to 96 HDC camera systems
  • MSU-3000 fits a 19-inch EIA rack (full-rack-mount), MSU-3500 fits a 9.5-inch EIA rack (half-rack-mount)
  • 7-inch WVGA (800 x 480) LCD panel for operational status and paint settings
  • 21 assignable keys for MSU-3000, 3 keys for MSU-3500
  • USB flash drive support for saving and loading settings
  • Assignable buttons and LEDs listed on the display for easy operation

Technical Specifications

MSU-3000 Dimensions: 15 7/8" x 8 3/4" x 2 3/4" (400.6 x 222 x 67 mm)
MSU-3500 Dimensions: 8 1/8" x 12 1/4" x 2 3/4" (204 x 310 x 67 mm)
Weight (MSU-3000): 9 lb. 4 oz. (4.2 kg)
Weight (MSU-3500): 7 lb. 8 oz. (3.4 kg)

Power Supply: 100–240 V AC 50/60 Hz 0.30 A (Max.), 10.5–17 V DC 2.3 A (Max.)
Operating Temperature: 41 °F to 104 °F (5 °C to 40 °C)
Storage Temperature: -4 °F to 140 °F (-20 °C to 60 °C)

Input/Output Connectors:
LAN: RJ-45 8pin (x1) 1000BASE-T, 100BASE-TX, 10BASE-T
Remote CCU/CNU: Multi-connector 8-pin, female (x1)
AUX: Multi-connector 8-pin, female (x1)
I/O Port: D-Sub 50-pin, female (x1)
AC In: 3-pin (x1)
DC In: XLR 4-pin (x1)

What's Included

  • MSU-3000 or MSU-3500 Master Setup Unit
  • Power Cable
  • USB Flash Drive (for saving/loading settings)
