SoundTube PC9.5 4-Way Single Tower Speaker
SoundTube PC9.5 4-Way Single Tower Speaker The PhaseTech PC9.5 is the flagship of the Premier Collection—a handcrafted, four-way floor-standing speaker that delivers breathtaking detail and imaging from 28 Hz to 22 kHz. Its three patented 6.5″ tri-laminate Kevlar/RPF®/glass-fiber woofers, 1.5″ soft-dome midrange...
PRODUCT DETAILS
Everything you need to know.

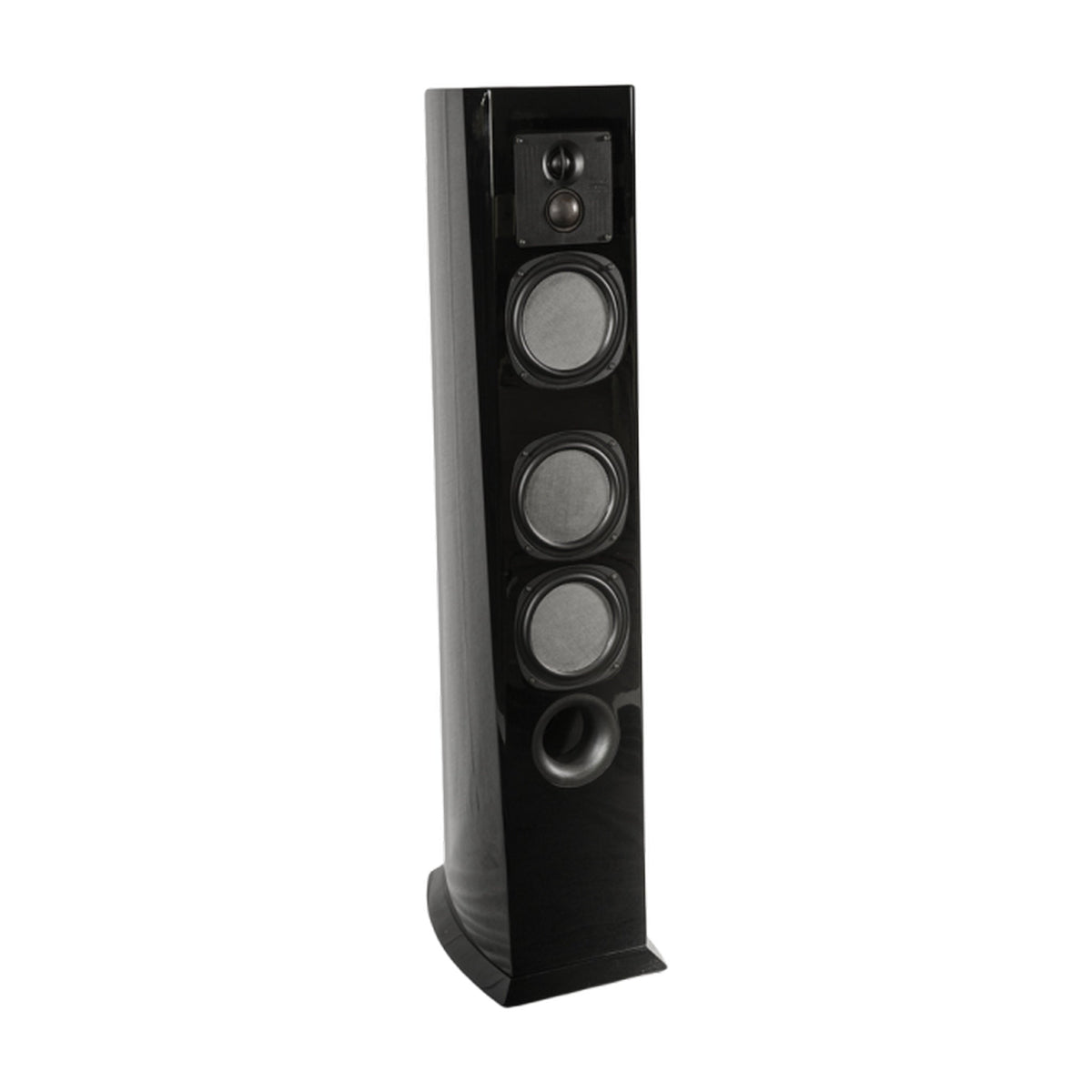

SoundTube PC9.5 4-Way Single Tower Speaker
The PhaseTech PC9.5 is the flagship of the Premier Collection—a handcrafted, four-way floor-standing speaker that delivers breathtaking detail and imaging from 28 Hz to 22 kHz. Its three patented 6.5″ tri-laminate Kevlar/RPF®/glass-fiber woofers, 1.5″ soft-dome midrange and 1″ soft-dome tweeter are crossed with Absolute Phase® networks to create a seamlessly integrated soundstage.
Available in Gloss Black or Matte White, the PC9.5’s elegantly curved cabinet and magnetic cloth grille blend into any décor. Gold-plated binding posts and ported enclosure ensure rock-solid connections and extended bass down to 28 Hz.
Key Features
- Drivers: Three 6.5″ Kevlar/RPF®/glass-fiber woofers; 1.5″ soft-dome midrange; 1″ soft-dome tweeter
- Crossover: Absolute Phase® at 200 Hz, 2 kHz & 5 kHz
- Frequency Response (±3 dB): 28 Hz – 22 kHz
- Sensitivity: 91 dB @ 2.83 V/1 m
- Impedance: 4 Ω nominal
- Max SPL @ 1 m: 121 dB
- Recommended Power: 20 – 450 W RMS
- Enclosure: Ported MDF cabinet
- Inputs: Gold-plated binding posts
- Accessories: Magnetic cloth grille, floor spikes
Technical Specifications
- Dimensions: 14.9″ D × 45.5″ H × 9″ W (378.4 × 1155.7 × 228.6 mm)
- Shipping Weight: 71.55 lbs (32.44 kg)
- Carton: 49″ H × 17.25″ L × 20.25″ W (1244.6 × 438.2 × 514.4 mm)
- Frequency Response (–10 dB): 24 Hz – 24 kHz
- Nominal Impedance: 4 Ω
- Port Tuning: 32 Hz
- Crossover Slopes: 12 / 18 / 24 dB/oct
- Finish: Gloss Black or Matte White
Available Variations
- PC9.5BL: Gloss Black
- PC9.5WH: Matte White
