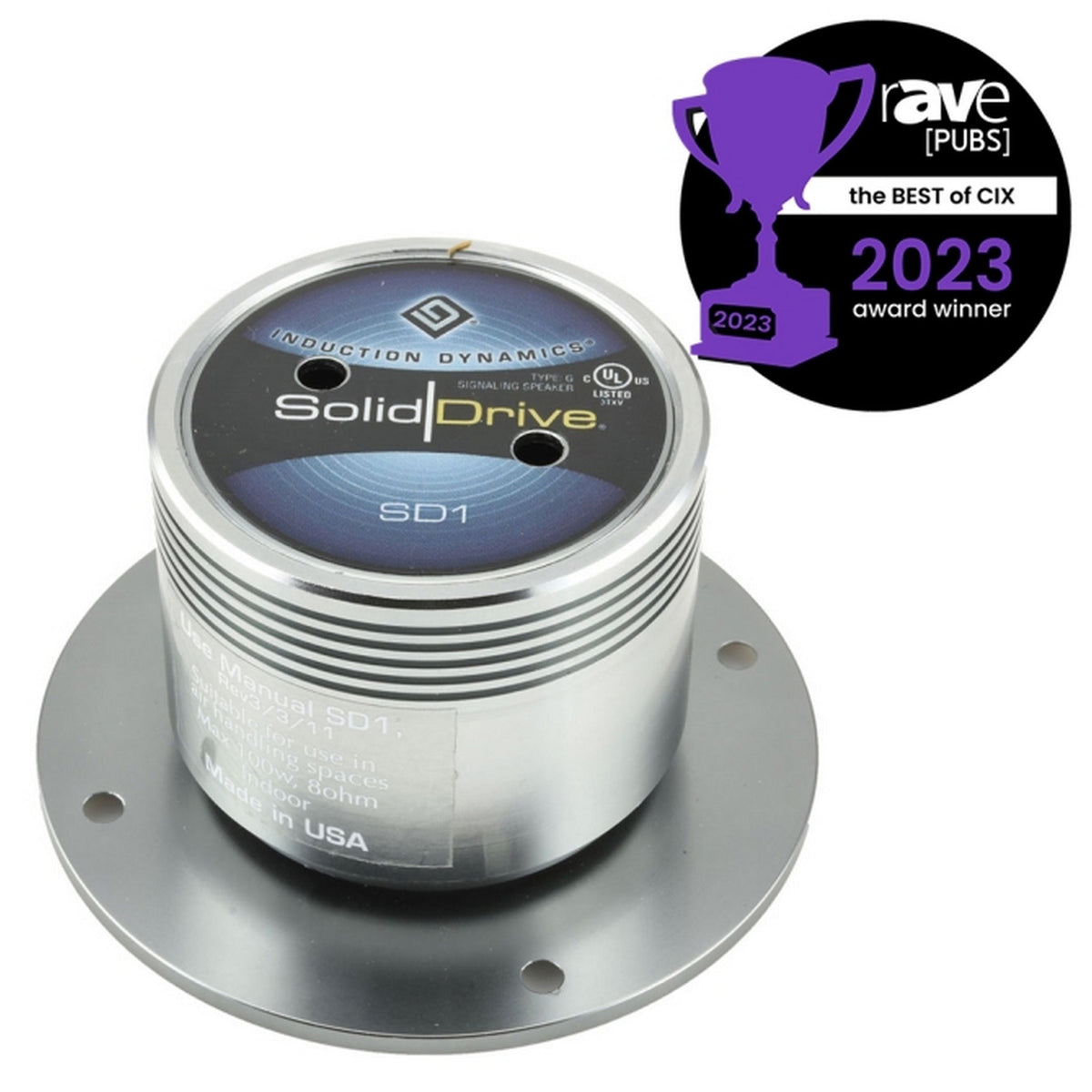

SoundTube SD-1 Titanium Drywall Surface Mount Actuator

SolidDrive SD-1 Titanium Drywall Surface Mount Actuator

The SolidDrive SD-1 Titanium is a patented surface-mount audio transducer that attaches directly to drywall using a precision-engineered cantilever spring bracket. Featuring dual-voice coil technology within an anodized aluminum enclosure, it delivers full-range sound by converting audio signals into powerful vibrations.

Equipped with high-powered neodymium magnets and symmetrically opposed motors, the SD-1 produces uniform planar-source acoustics across any mounted surface. Its titanium finish not only enhances durability but also complements modern architectural aesthetics.

Key Features

• Drive Technology: Dual-voice coil transducer with patent-pending design
• Mounting: Patented cantilever spring bracket for drywall (SD-1), VHB Adhesive Disc for glass (SD-1G), wood screw mount for wood surfaces (SD-1SM)
• Enclosure: Anodized aluminum with titanium finish
• Inputs: Wire leads
• Certifications: CE, RoHS, UL1480A, UL2043
• Compliance: TAA and BAA (Made in USA)

Technical Specifications

• Frequency Response (±10 dB): 60 Hz – 15 kHz (without EQ)
• Frequency Response (±3 dB): 80 Hz – 10 kHz (without EQ)
• Max. Continuous Power (RMS): 30 W
• Max. Program Power: 100 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 8 Ω
• Sensitivity @1 W/1 m: 73.5 dB
• Sensitivity @2.83 V/1 m: 70 – 75 dB
• Enclosure Properties: Anodized aluminum
