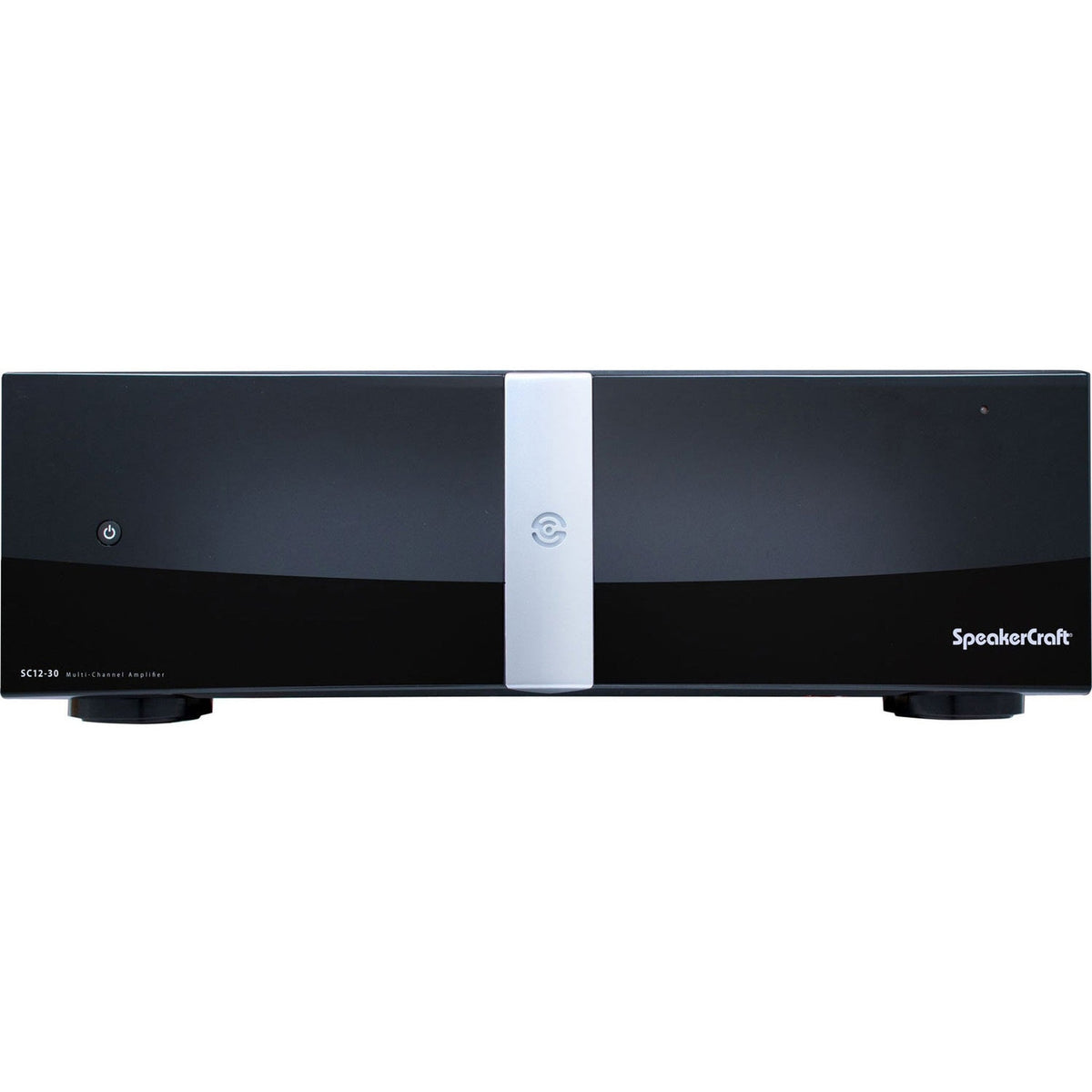

SpeakerCraft SC12-30 12-Channel 30W Distribution Amplifier, BusMatrix

The SpeakerCraft SC12-30 is a fully configurable 12-channel distribution amplifier built to deliver the classic SpeakerCraft stability that custom installers know and trust. Purpose-designed to solve the challenges of interfacing with different brands and models of equipment across varied rooms and applications, the SC12-30 makes multi-zone and multi-room amplification more straightforward than ever before.

With 12 channels providing 30 watts per channel — or 80 watts when adjacent channels are bridged — plus the unique BusMatrix Selector, the SC12-30 gives integrators the flexibility to route and power whole-home audio from a single rack-mountable chassis. Low distortion of just 0.2% THD, a wide 3-24V trigger input, and 12-volt control output round out a professional feature set aimed at reliable, clean performance in demanding installations.

Features

• 12 independent channels for true multi-zone / multi-room distribution
• 30 watts RMS per channel, bridgeable to 80 watts on adjacent channels
• Unique BusMatrix Selector for flexible signal routing
• Low 0.2% THD from 20Hz to 20kHz for clean output
• Voltage trigger input (3-24VAC/DC) and 12-volt control output
• Rack-mountable chassis with rack ears included
• Removable line cord and fan-free cooling design

Technical Specifications

• Number of Channels: 12
• Power (8 Ohms): 30 watts RMS per channel, all channels driven
• Power (4 Ohms): 40 watts RMS per channel, all channels driven
• Bridged Power: 80 watts RMS into 8 Ohms (adjacent channels)
• Total Harmonic Distortion: 0.2% THD, 20Hz to 20kHz
• Trigger: 3-24VAC/DC input; 12-volt control out
• Rack Mountable: Yes, rack ears included
• Dimensions: 17.25"W x 5.75"H (with feet) x 16.25"D
• Weight: 35 lb (15.8 kg)
• Compliance: US, Canada, EU, and Australian safety and EMC standards
• Warranty: 2-year limited
