Sprolink PCO100 Professional PTZ Camera Controller 5.5in Touch 255 Cams

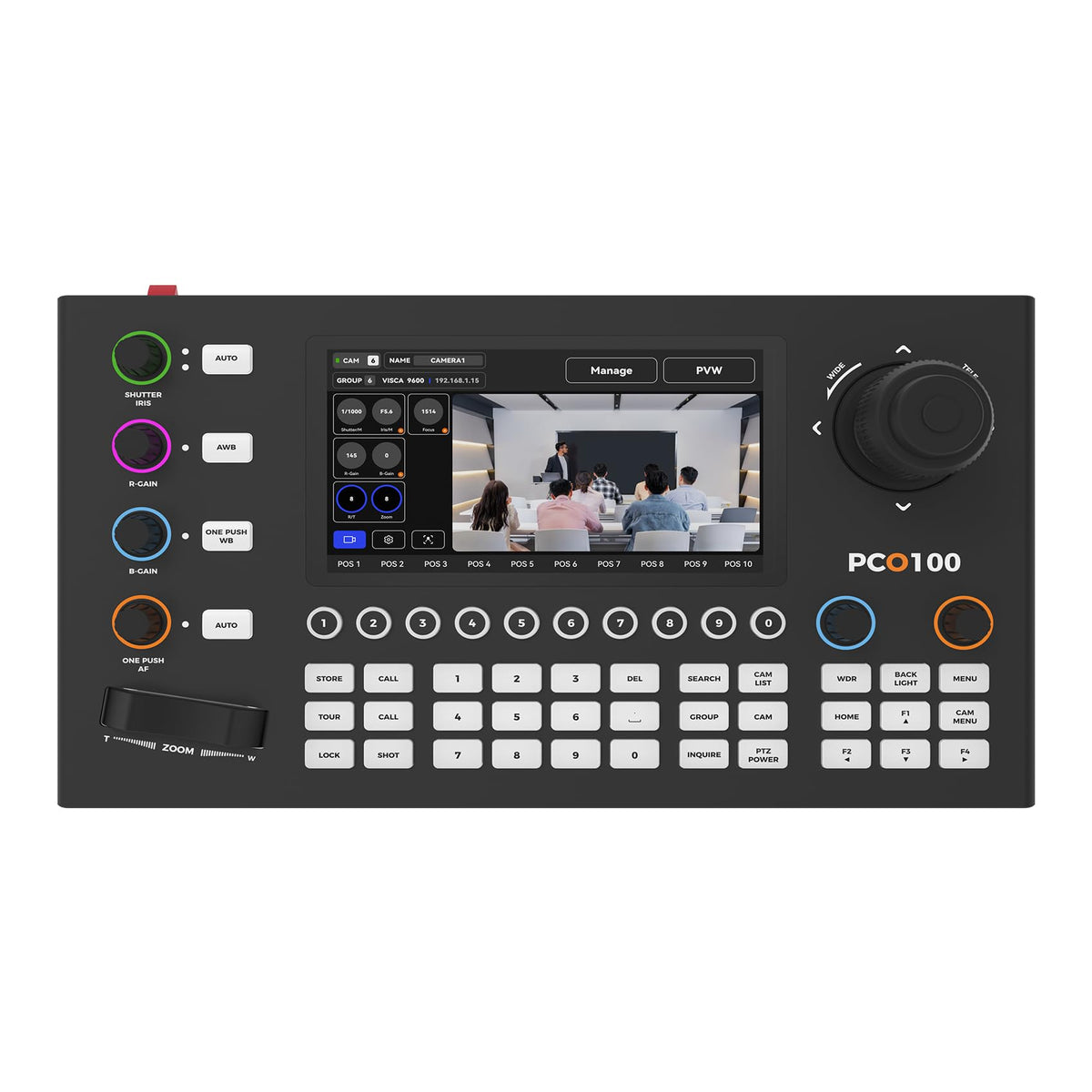

Sprolink PCO100 Professional PTZ Camera Controller

The Sprolink PCO100 is a professional PTZ camera controller built for demanding broadcast, education, house-of-worship, and corporate AV environments. Featuring a 5.5-inch touchscreen with live RTSP/ONVIF camera preview, the PCO100 puts real-time visibility and intuitive control at your fingertips. Its rugged all-metal chassis and multi-protocol architecture make it a reliable hub for any PTZ-driven production.

Supporting IP, RS-422, RS-485, and RS-232 cross-protocol control in a single unit, the PCO100 works seamlessly across VISCA, VISCA-over-IP, VISCA-SONY, ONVIF, and Pelco P/D protocols. Operators can address up to 255 cameras on the same network, store 255 presets per camera, and leverage built-in AI people-tracking to turn any compatible PTZ into an auto-tracking camera without additional hardware.

Six precision rotary dials deliver hands-on adjustment of iris, gain, shutter speed, exposure, and white balance, while 10 direct-access camera buttons and a professional 4D joystick ensure fluid pan, tilt, and zoom operation. TALLY Light GPIO output, PoE or 12 VDC power flexibility, and NDI-ready compatibility round out a feature set designed for production-grade deployments.

Key Features

• Multi-Protocol Cross Control: Simultaneously supports VISCA, VISCA-over-IP, VISCA-SONY, ONVIF, and Pelco P/D over IP, RS-422, RS-485, and RS-232 from a single controller.
• 5.5-Inch Live Touchscreen: Built-in LCD displays live RTSP/ONVIF camera feeds and provides a touch interface for camera settings and AI tracking subject selection.
• Control Up to 255 Cameras: Addresses up to 255 IP cameras on the same network with 255 presets per camera and 10 instant-access camera selection buttons.
• AI Intelligent Tracking: Select a subject on the touchscreen and the PCO100 commands any VISCA-over-IP compatible PTZ to automatically follow the subject, no separate tracking appliance needed.
• Camera Cruise Automation: Records and automatically replays custom PTZ movement sequences for repeatable, unattended shot coverage.

Technical Specifications

• Display: 5.5-inch touchscreen LCD with live RTSP/ONVIF camera preview
• Supported Protocols: VISCA, VISCA-over-IP, VISCA-SONY, ONVIF, Pelco P/D
• Control Interfaces: 1x RS-232 DIN 8-pin, 1x RS-485 RJ-45, 1x RS-422 RJ-45, 1x IP RJ-45
• Camera Capacity: Up to 255 cameras via IP; up to 7 via VISCA serial; 255 presets per camera
• Joystick: Professional 4D joystick (pan, tilt, zoom, focus)
• Rotary Controls: 6 dials for iris, gain, shutter, exposure, white balance, and focus
• Power Supply: 12 VDC or PoE (Power over Ethernet)
• Power Consumption: 5 W
• Chassis: All-metal construction
• GPIO: TALLY Light GPIO output for camera identification integration
• Dimensions: 11.1 x 6.7 x 4.4 in (283 x 170 x 111 mm)
• Weight: 5.5 lbs (2.5 kg)
