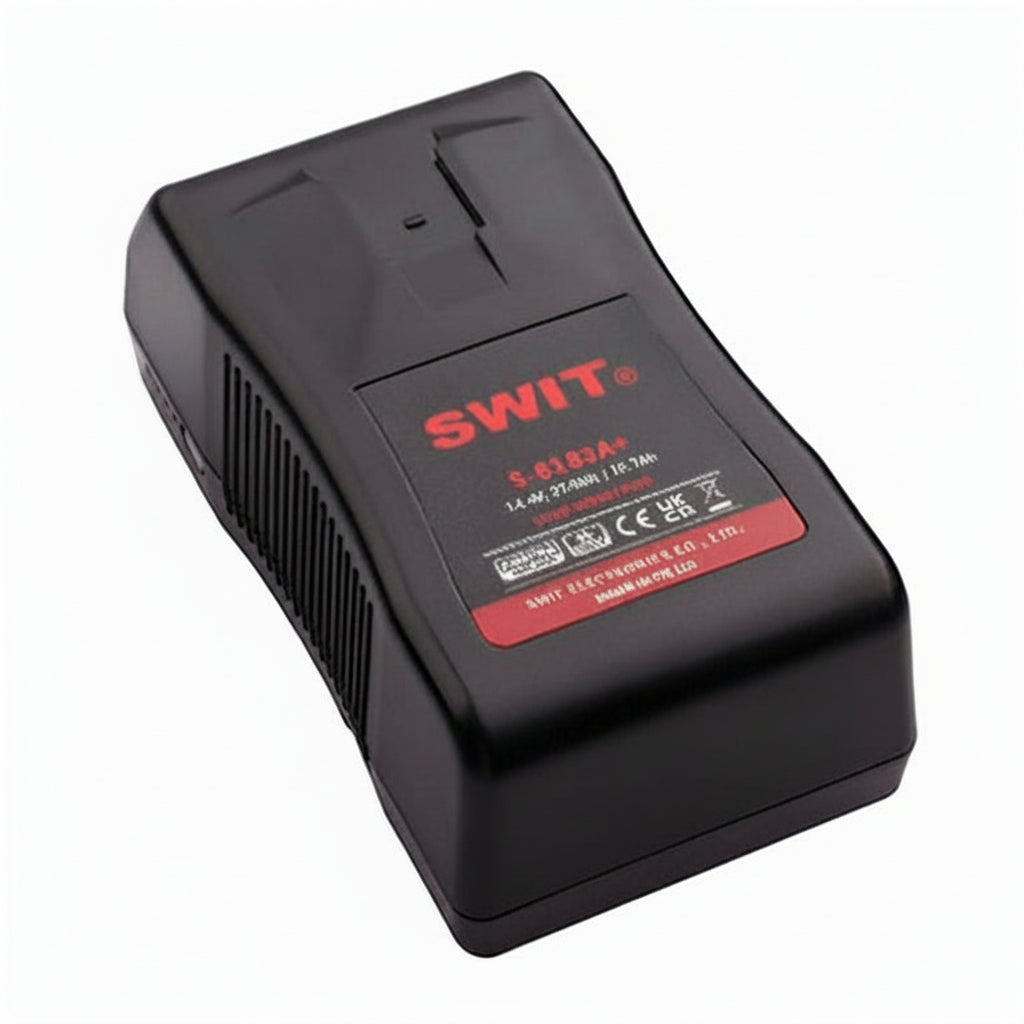

SWIT S-8183A PLUS 270Wh High-Load Gold Mount Battery

SWIT S-8183A+ 270Wh High-Load Gold Mount Battery

The SWIT S-8183A+ 270Wh Gold Mount battery delivers high-capacity 14.4V power for professional cinema cameras, production lights, and other demanding equipment. Its high-load lithium-ion cells maintain at least 250W and 20A of continuous output, even when only 1% of the battery capacity remains.

Designed for cinematographers, broadcast crews, rental facilities, and mobile production teams, the S-8183A+ combines extended runtime with dependable high-current performance. A top-mounted D-Tap socket supplies compatible monitors, wireless transmitters, on-camera lights, recorders, and other accessories with up to 120W and 10A of power.

A four-level LED indicator provides a quick view of the remaining battery capacity before and during production. The battery supports 6A fast charging, reaching approximately 80% capacity in 2.5 hours and a full charge in 3.8 hours with compatible equipment. Ultra-low standby consumption helps retain stored power, while multiple protection circuits support reliable professional operation.

Key Features

• 270Wh High Capacity: Provides 18.75Ah of extended power for cameras, lights, and production accessories.
• 250W Continuous Output: Supports demanding professional equipment with a constant load of up to 20A.
• Full-Discharge Performance: Maintains at least 250W and 20A with only 1% battery capacity remaining.
• 6A Fast Charging: Reduces turnaround time between shoots when used with compatible charging equipment.
• D-Tap Accessory Output: Supplies up to 120W and 10A for monitors, transmitters, lights, and other devices.
• Four-Level LED Indicator: Provides an immediate visual estimate of the remaining battery capacity.
• Ultra-Low Standby Consumption: Helps preserve stored power during extended periods between productions.
• Integrated Circuit Protection: Supports dependable operation with multiple electronic safety protections.

Technical Specifications

• Model: S-8183A+
• Product Type: High-load professional camera battery pack
• Battery Chemistry: Lithium-ion
• Battery Mount: Gold Mount
• Nominal Voltage: 14.4V
• Capacity: 270Wh / 18.75Ah
• Maximum Total Output: 250W
• Main Electrode Output: 250W / 20A
• Continuous Output at 1% Capacity: At least 250W / 20A
• D-Tap Outputs: 1
• D-Tap Output: Nominal 14.4V, 120W / 10A
• Maximum Charging Current: 6A
• Charge Time to 80%: Approximately 2.5 hours with compatible 6A charging equipment
• Full Charging Time: Approximately 3.8 hours with compatible 6A charging equipment
• Power Indicator: Four-level LED capacity indicator
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Dimensions: 6.50" x 3.54" x 2.68"
• Weight: 2.87 lbs
