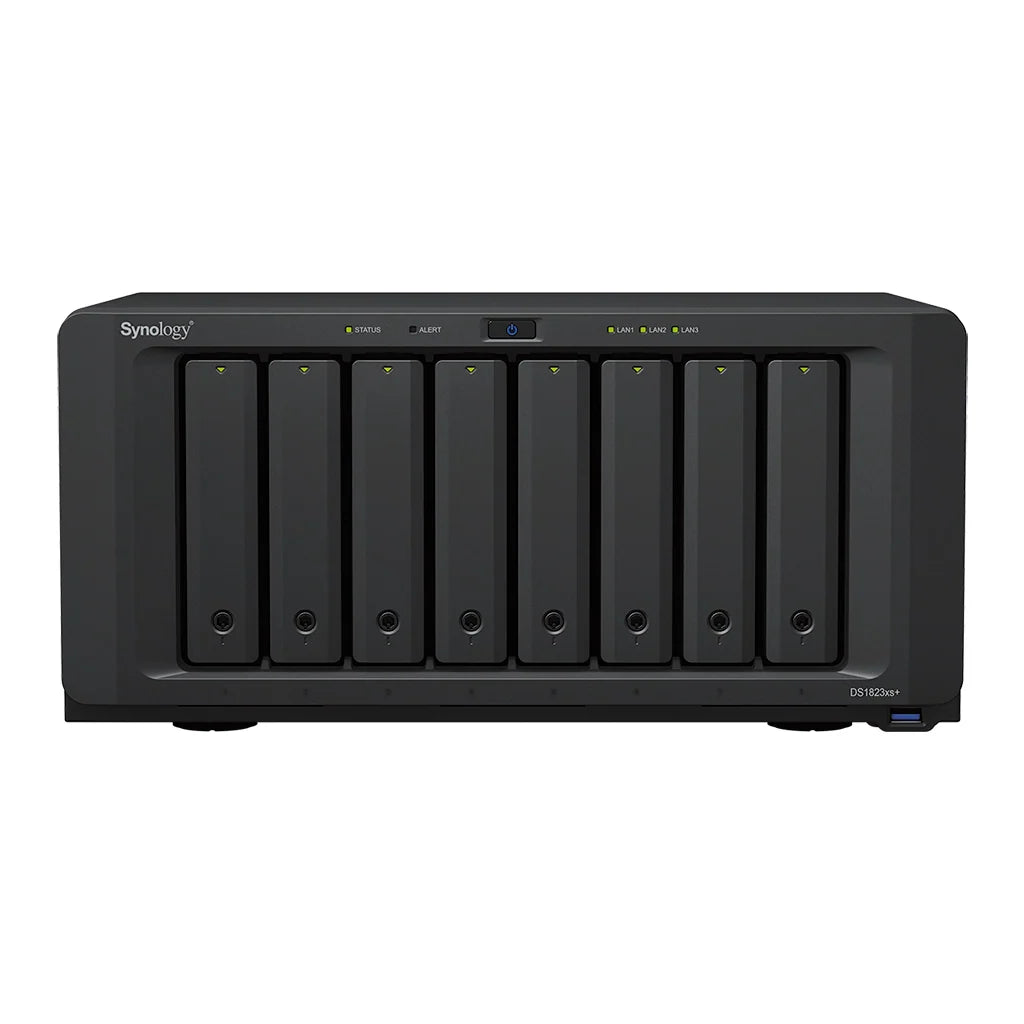

Synology DS1823xs+ 8-Bay DiskStation NAS Enclosure (Diskless)

Synology DS1823xs+ 8-Bay High-Performance NAS for Small and Medium Businesses

The Synology DS1823xs+ is a diskless 8-bay DiskStation NAS powered by an AMD Ryzen V1780B quad-core processor, delivering over 3,100 MB/s sequential read and 2,600 MB/s sequential write speeds with built-in 10GbE connectivity and up to 144 TB raw storage capacity.

Ideal for IT administrators, creative teams, and growing SMBs seeking a desktop-class private data center, the DS1823xs+ excels as a centralized file server for multi-user collaboration, endpoint backup for up to 300 devices, VM storage, and IP surveillance management for up to 75 cameras without a dedicated server rack.

Backed by a 5-year warranty and certified FCC, CE, RCM, and more, the DS1823xs+ is part of Synology's trusted DiskStation ecosystem, fully compatible with DSM software and a broad range of Synology-validated drives, expansion units, and network interface cards.

Key Features of the Synology DS1823xs+

• High-Speed AMD Ryzen V1780B Processor: Quad-core 3.35 GHz (base) / 3.6 GHz (turbo) 64-bit CPU with AES-NI hardware encryption engine for fast, secure data transfers.
• Exceptional Throughput: Over 3,100 / 2,600 MB/s sequential read/write performance makes it suitable for demanding NAS workloads, including 4K media and virtualization.
• Built-in 10GbE Connectivity: One 10GbE RJ-45 port plus two 1GbE ports (with Link Aggregation and Failover) eliminate the need for separate network upgrade cards in most deployments.
• Flexible Expansion: 8 drive bays expandable to 18 via two DX517 expansion units, plus 2 M.2 NVMe SSD slots for SSD cache, and optional 25GbE or Fibre Channel NICs for future growth.
• ECC Memory and Btrfs Data Integrity: 8 GB DDR4 ECC SODIMM (expandable to 32 GB) combined with the Btrfs file system provides metadata mirroring, file self-healing, and point-in-time snapshots to protect critical business data.
• Hot-Swappable Drives: All 8 SATA bays support hot-swappable 3.5 inch SATA HDDs and 2.5 inch SATA SSDs, minimizing downtime during drive replacement.
• Versatile Business Applications: Natively supports backup for 300 endpoints, management of 75 IP cameras, and secure file sync and sharing between remote sites via Synology DSM.
• Quiet Desktop Form Factor: Dual 120 mm fans with selectable speed modes keep noise at just 23.6 dB(A), making the DS1823xs+ suitable for office environments without a dedicated data center.

Technical Specifications

• CPU Model: AMD Ryzen V1780B
• CPU Architecture: 64-bit, 4-core
• CPU Frequency: 3.35 GHz base / 3.6 GHz turbo
• Hardware Encryption: AES-NI
• System Memory: 8 GB DDR4 ECC SODIMM (pre-installed: 8 GB x 1)
• Memory Slots: 2 total; maximum 32 GB (16 GB x 2)
• Drive Bays: 8
• Maximum Drive Bays (with Expansion): 18 (DX517 x 2)
• M.2 Drive Slots: 2 x NVMe (M.2 2280)
• Compatible Drive Types: 3.5 inch SATA HDD, 2.5 inch SATA SSD, M.2 2280 NVMe SSD
• Hot-Swappable Drives: Yes (SATA bays; not M.2 slots)
• Sequential Read / Write: 3,100 MB/s / 2,600 MB/s
• LAN Ports: 2 x RJ-45 1GbE (Link Aggregation/Failover), 1 x RJ-45 10GbE
• Out-of-Band Management Port: 1
• USB Ports: 3 x USB 3.2 Gen 1
• PCIe Expansion Slot: 1 x Gen3 x8 (x4 link)
• Internal File Systems: Btrfs, EXT4
• External File Systems: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• System Fans: 120 mm x 120 mm x 2
• Fan Speed Modes: Full-Speed, Cool, Quiet
• Noise Level: 23.6 dB(A)
• Power Supply: 250 W
• AC Input Voltage: 100 V to 240 V AC, 50/60 Hz Single Phase
• Power Consumption (Access): 87.93 W
• Power Consumption (HDD Hibernation): 28.37 W
• Operating Temperature: 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F)
• Storage Temperature: -20 degrees C to 60 degrees C (-5 degrees F to 140 degrees F)
• Relative Humidity: 5% to 95% RH
• Dimensions (L x W x H): 19 x 15 x 13 inches
• Weight: 27 lbs
• Certifications: FCC, CE, BSMI, VCCI, RCM, EAC, CCC, KC
• Compliance: RoHS
• Warranty: 5 years

What's Included

• DS1823xs+ Main Unit x 1
• Accessory Pack x 1
• AC Power Cord x 1
• RJ-45 LAN Cable x 2
• Quick Installation Guide x 1
