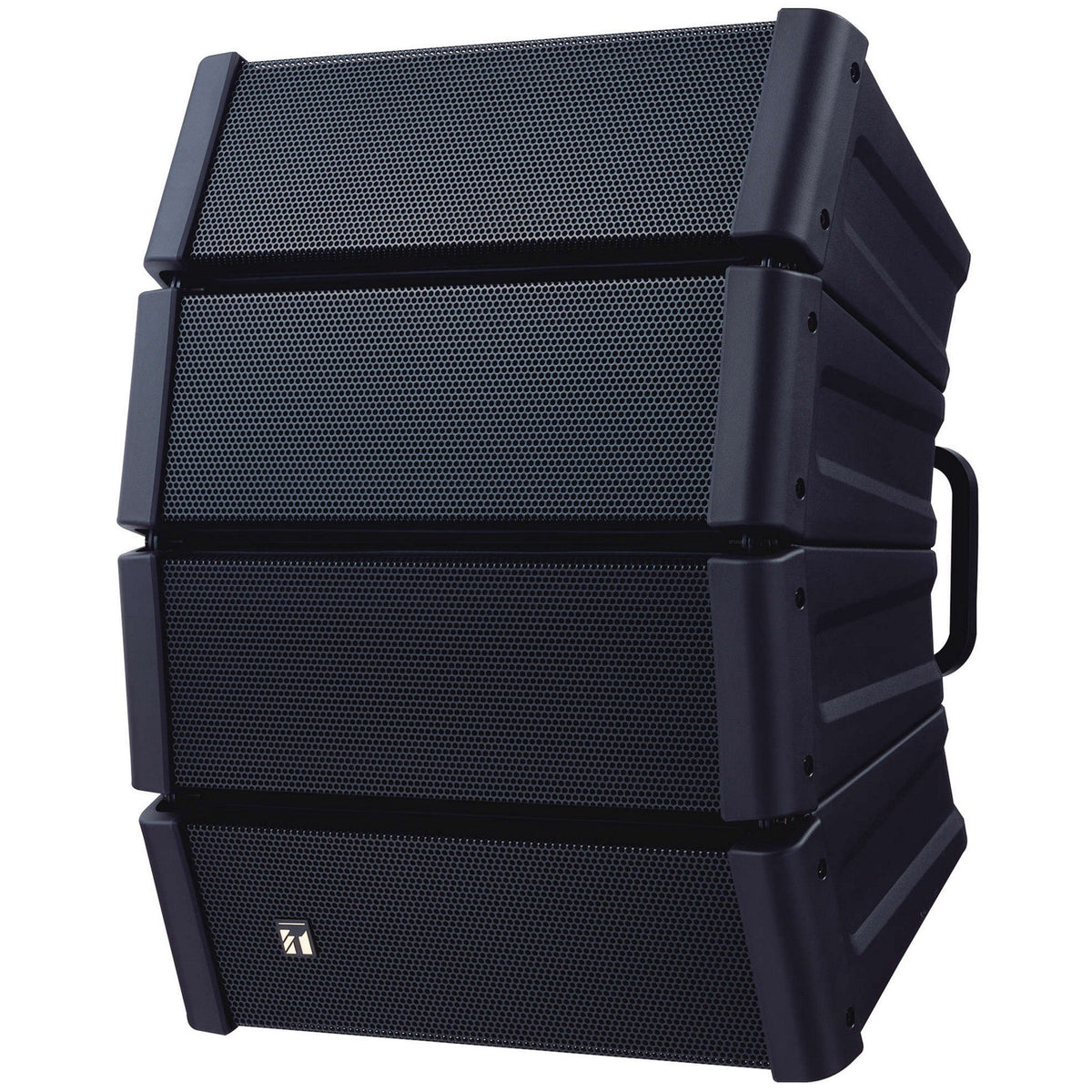

TOA Electronics HX-5B-WP 2-Way 600W IPX4 Variable Dispersion Line Array Speaker, 1 Unit

TOA Electronics HX-5B-WP 2-Way 600W IPX4 Variable Dispersion Line Array Speaker

The TOA HX-5B-WP is a 2-way compact variable dispersion array speaker designed to deliver controlled sound coverage in demanding indoor and protected outdoor installations. Its four-module architecture combines four low-frequency cone drivers with twelve balanced-dome high-frequency drivers, while adjustable 15°, 30°, 45°, and 60° vertical dispersion modes let installers tailor coverage to the acoustic environment.

Built for spaces where reverberation or elevated background noise can reduce speech and music clarity, the HX-5B-WP provides 600W continuous program power handling at 8 ohms. Horizontal coverage remains 100° above 2 kHz, while the configurable vertical pattern supports focused or expanded audience coverage. Up to four speaker units can also be stacked when an installation requires a larger array or increased coverage.

The sealed polypropylene enclosure carries an IPX4 splash-protection rating and supports indoor or under-eave installation when positioned as specified. A 4 kHz crossover integrates the low- and high-frequency sections, while sensitivity ranges from 96 dB in 60° mode to 99 dB in 15° mode. The black, rust-resistant construction and supplied hanging brackets support permanent professional sound installations.

Key Features

• 2-way compact array speaker with adjustable vertical directivity for application-specific coverage
• Selectable 15°, 30°, 45°, and 60° vertical dispersion configurations
• 100° horizontal directivity above 2 kHz for broad audience coverage
• 600W continuous program and 200W continuous pink-noise power handling at 8 ohms
• Four low-frequency cone drivers and twelve balanced-dome high-frequency drivers
• IPX4 splash protection supports indoor and protected under-eave installations
• Up to four speaker units can be stacked to expand system coverage
• Black polypropylene enclosure with rust-protected steel punched grille

Technical Specifications

• Enclosure: Sealed type
• Power Handling: Continuous pink noise: 200 W; Continuous program: 600 W
• Impedance: 8 ohms
• Sensitivity: 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode)
• Frequency Response: 95 Hz - 20 kHz (-10 dB) in 60° mode; 100 Hz - 20 kHz (-10 dB) in 45° mode; 105 Hz - 20 kHz (-10 dB) in 30° mode; 110 Hz - 20 kHz (-10 dB) in 15° mode
• Crossover Frequency: 4 kHz
• Horizontal Directivity: 100° above 2,000 Hz
• Vertical Directivity: 60° above 800 Hz; 45° above 1.2 kHz; 30° above 1.6 kHz; 15° above 3.2 kHz; variable
• Low-Frequency Speaker Components: 4.7" cone-type drivers x 4
• High-Frequency Speaker Components: Balanced dome-type drivers x 12
• Speaker Cable: 2-core cabtyre cord with approximately 0.2" diameter
• Dust/Water Protection: IPX4; install with every speaker module facing downward as specified
• Installation Environment: Indoor installation or under-eave installation
• Operating Temperature: 5°F to 122°F
• Enclosure Finish: Polypropylene, black
• Punched Net Finish: Surface-treated steel plate, black, with rust-proof coating
• Dimensions: 16.1" W x 21.5" H x 13.5" D
• Weight: 35.3 lbs
• Maximum Stack: Up to four speaker units
• Optional Matching Transformer: MT-200
• Optional Speaker Mounting Brackets: HY-PF1WP, HY-CW1WP, HY-WM1WP, HY-WM2WP, HY-CN1B-WP

What's Included

• TOA HX-5B-WP Compact Array Speaker
• Hanging Brackets x 2
• Hex Wrench x 1
