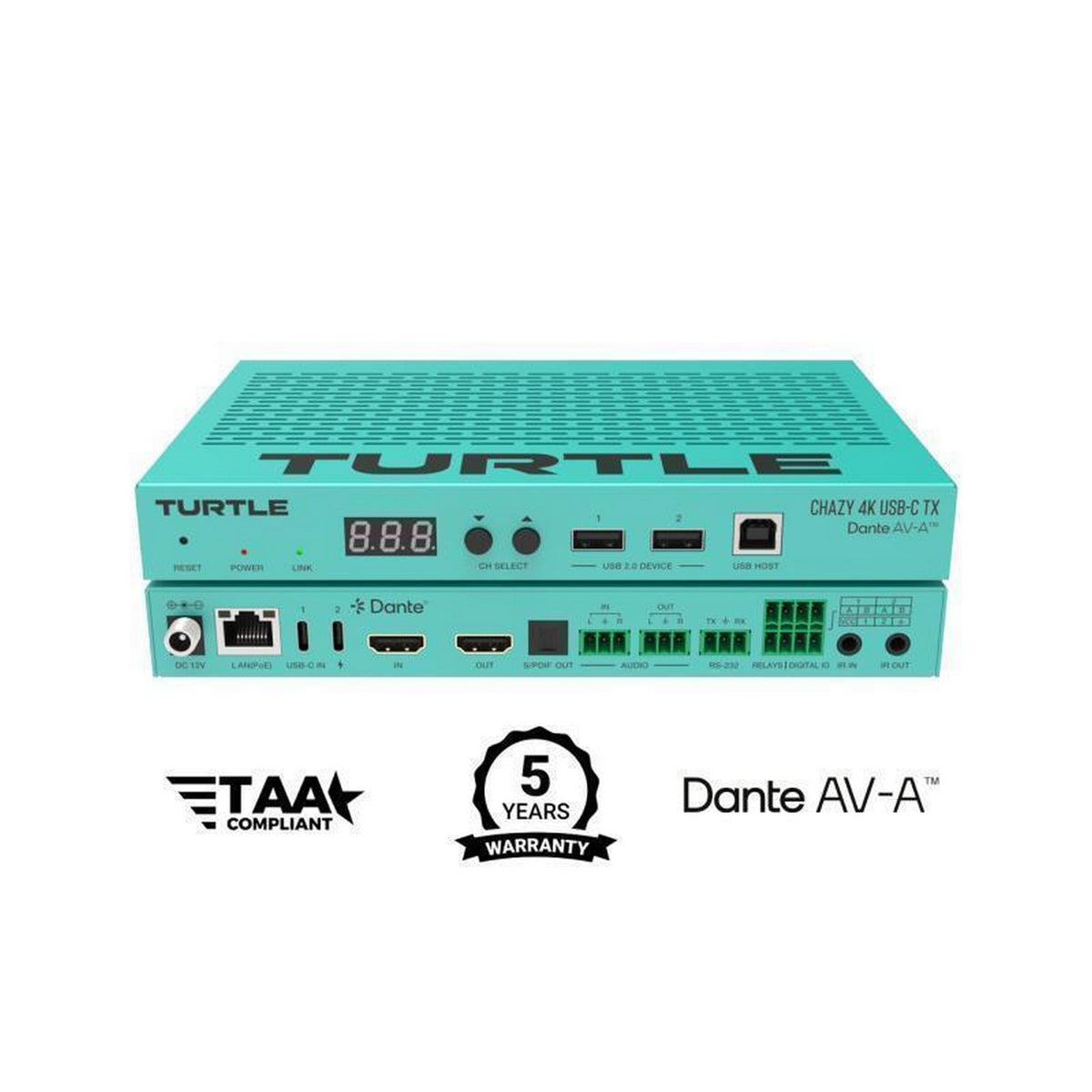

Turtle AV Chazy 4K USB-C TX Dante AV-A HDMI Encoder

The Turtle AV Chazy 4K USB-C TX is a high-performance AV over IP encoder that delivers UHD 4K60 video with 4:4:4 HDR directly from USB-C or HDMI sources. Designed for professional AV systems, conferencing, digital signage, and media distribution, it integrates seamlessly with Dante AV-A and JPEG 2000 protocols for low-latency, high-fidelity video and audio transport. The included Dante AV-A license (with 2×2 Dante audio) means no extra license is needed to deploy.

This encoder supports dual input options: USB-C for laptops/tablets and HDMI 2.0b for standard video sources, giving installation flexibility across many use cases. It supports advanced features such as 7.1-channel Dolby Atmos audio, KVM support, hardware scaling, EDID management, HDCP 2.2 compliance, multicast and video-wall configurations (up to 9×9), and dual network ports for separate AV and control streams. Power is supplied by PoE or optional 12 V DC, simplifying installation in racks or mounted setups.

Compact and rack-ready, the Chazy 4K USB-C TX encoder is ideal for corporate boardrooms, digital signage networks, broadcast systems, or any environment where robust, scalable AV over IP infrastructure is needed. Its silent fan-less metal housing and 5-year warranty ensure reliable long-term operation and low maintenance.

Key Features

• Dual Input Flexibility: Accepts video via USB-C or HDMI 2.0b.
• UHD 4K60 4:4:4 HDR Output: High resolution and color fidelity for professional displays.
• Dante AV-A & JPEG 2000 Encoding: Low-latency AV over IP distribution with included Dante license and audio support.
• Advanced Audio Support: 7.1-channel Dolby Atmos, Dolby TrueHD, DTS-HD, LPCM and other professional audio formats.
• Video Wall & Multicast Ready: Supports video wall configurations up to 9×9 and multicast streaming.
• PoE or 12 V DC Powering: Flexible installation without heavy wiring requirements.
• KVM, Hardware Scaling, EDID Management: Full control over video/audio routing and display compatibility.
• Fanless Metal Enclosure: Quiet, durable, and rack-mountable for long-term use.

Technical Specifications

• HDMI Standard: HDMI 2.0b compliant, HDCP 2.2 compatible
• Video Output: Up to 4K60 (2160p 60Hz), 4:4:4 HDR
• Compression Codecs: Dante AV-A or JPEG 2000
• Network Bandwidth: 1 Gbps Ethernet
• USB Bandwidth: 480 Mbps for USB-C input
• Color Depth & Space: Input 8/10/12-bit; output 8-bit. RGB 4:4:4 or YCbCr 4:4:4 / 4:2:2 / 4:2:0
• Audio Formats Supported: LPCM 2.0/5.1/7.1, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS / DTS-HD variants, DSD, DTS High Res
• Connections (Input): 1 × HDMI, 2 × USB-C, 1 × Audio In (Phoenix 3-pin)
• Connections (Output): 1 × HDMI, 1 × SPDIF Optical Out, 1 × Analog Audio Out (Phoenix block)
• Control & Extras: Dual LAN (PoE + data), RS-232 (Phoenix), USB 2.0 host and device ports, IR In/Out, relay outputs, support for KVM and control integration
• Dimensions (W × D × H): 8.03 in × 5.35 in × 1.00 in
• Weight: 1.39 lbs
• Power Supply: PoE (IEEE 802.3af) or 12 V DC 2.5 A
• Power Consumption: ~8.5 W
• Operating Range: 32 – 104 °F, 20 – 90% relative humidity (non-condensing)
