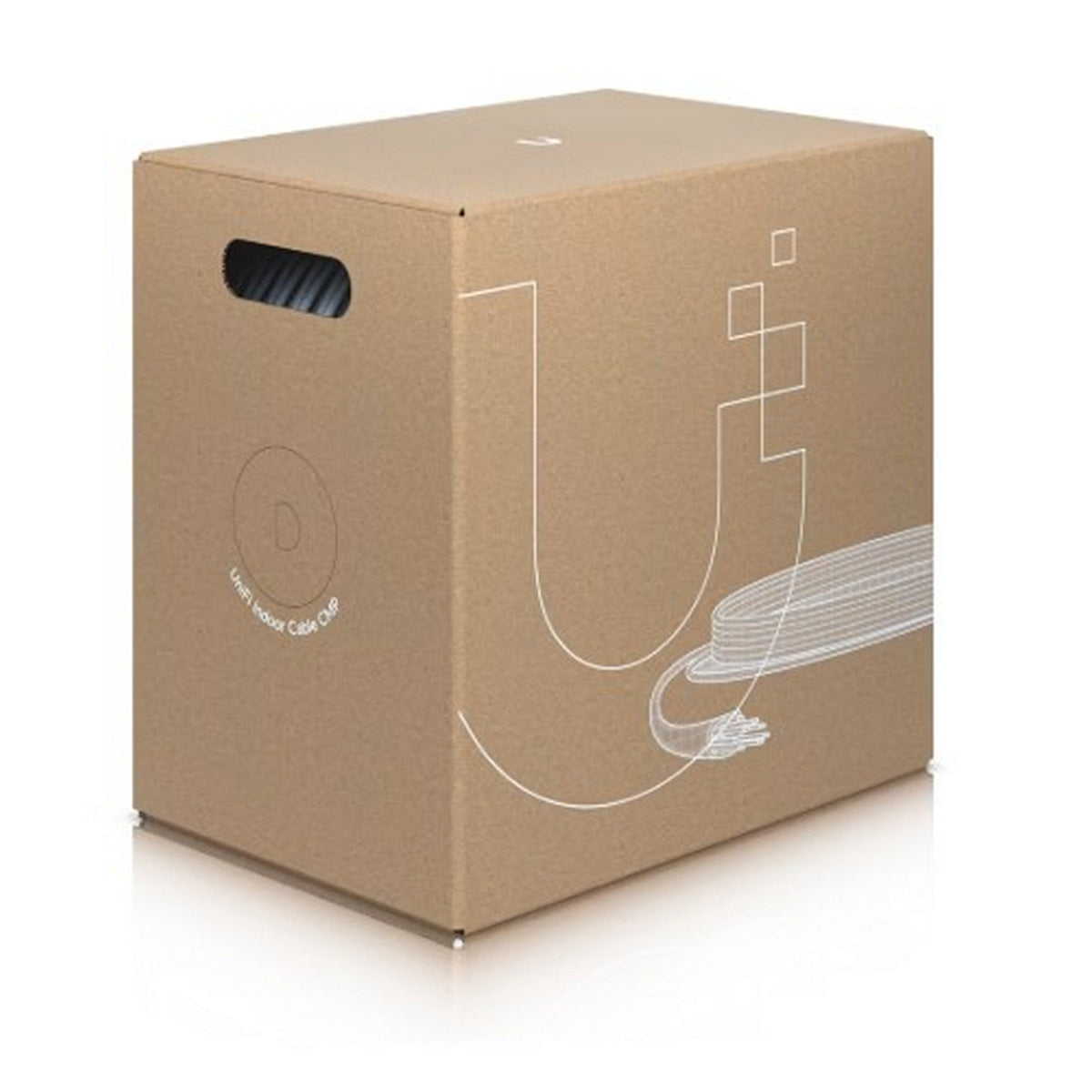

Ubiquiti Plenum-rated White Cat6 Ethernet Cable, 305M
In stock SKU: UBI-UCABLEC6CMP

ToneCraft Gear

Ubiquiti Plenum-rated White Cat6 Ethernet Cable, 305M

$327.18

Ubiquiti U-Cable-C6-CMP: High-Performance Cat6 Plenum-Rated Ethernet Cable Enhance your network infrastructure with the Ubiquiti U-Cable-C6-CMP, a plenum-rated Cat6 Ethernet cable designed for safe and efficient installations in commercial and enterprise environments. Engineered for high-speed data transmission and superior durability, this cable features...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.

Ubiquiti U-Cable-C6-CMP: High-Performance Cat6 Plenum-Rated Ethernet Cable

Enhance your network infrastructure with the Ubiquiti U-Cable-C6-CMP, a plenum-rated Cat6 Ethernet cable designed for safe and efficient installations in commercial and enterprise environments. Engineered for high-speed data transmission and superior durability, this cable features a low smoke flame retardant PVC jacket, solid bare copper conductors, and an anti-crosstalk divider to ensure reliable performance. Certified for stringent safety and environmental standards, the U-Cable-C6-CMP is ideal for demanding applications in plenum spaces.

Key Features

  • Plenum-rated Category 6 Ethernet cable for enhanced safety and performance.
  • Supports up to 10 Gbps data rates and 600 MHz bandwidth.
  • Low smoke flame retardant PVC jacket for safe use in plenum spaces.
  • Solid bare copper conductors and anti-crosstalk divider for reliable signal quality.
  • Complies with ANSI/TIA, ISO/IEC, and NFPA 262 standards.

Technical Specifications

Box dimensions: 474 x 346 x 458 mm (18.7 x 13.6 x 18")
Box weight: 14.8 kg (32.5 lb)
Cable length: 305 m (1000 ft)
Cable color: White
Cable type: Category 6
Shielding type: UTP
Flame rating: CMP
Conductor wire gauge: 23 AWG
Conductor type: Solid bare copper
Jacket material: Low smoke flame retardant PVC
Jacket diameter: 5.6 ± 0.2 mm
Bend radius: Min. 22.4 mm
Pulling tension: Max. 110 N
Storage temperature: -20 to 75°C (-4 to 167°F)
Installation temperature: 0 to 60°C (32 to 140°F)
Ambient operating temperature: -20 to 60°C (-4 to 140°F)
Anti-crosstalk divider: Yes
Ripcord: Yes
Data rate: 10/100/1000 Base-T
Reference bandwidth: Up to 600 MHz
Standards:
Electrical transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)
Flame test:
NFPA 262 (CMP)
Material and construction:
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)

Package Contents

  • Ubiquiti U-Cable-C6-CMP Cat6 Plenum-Rated Cable (305 m).
