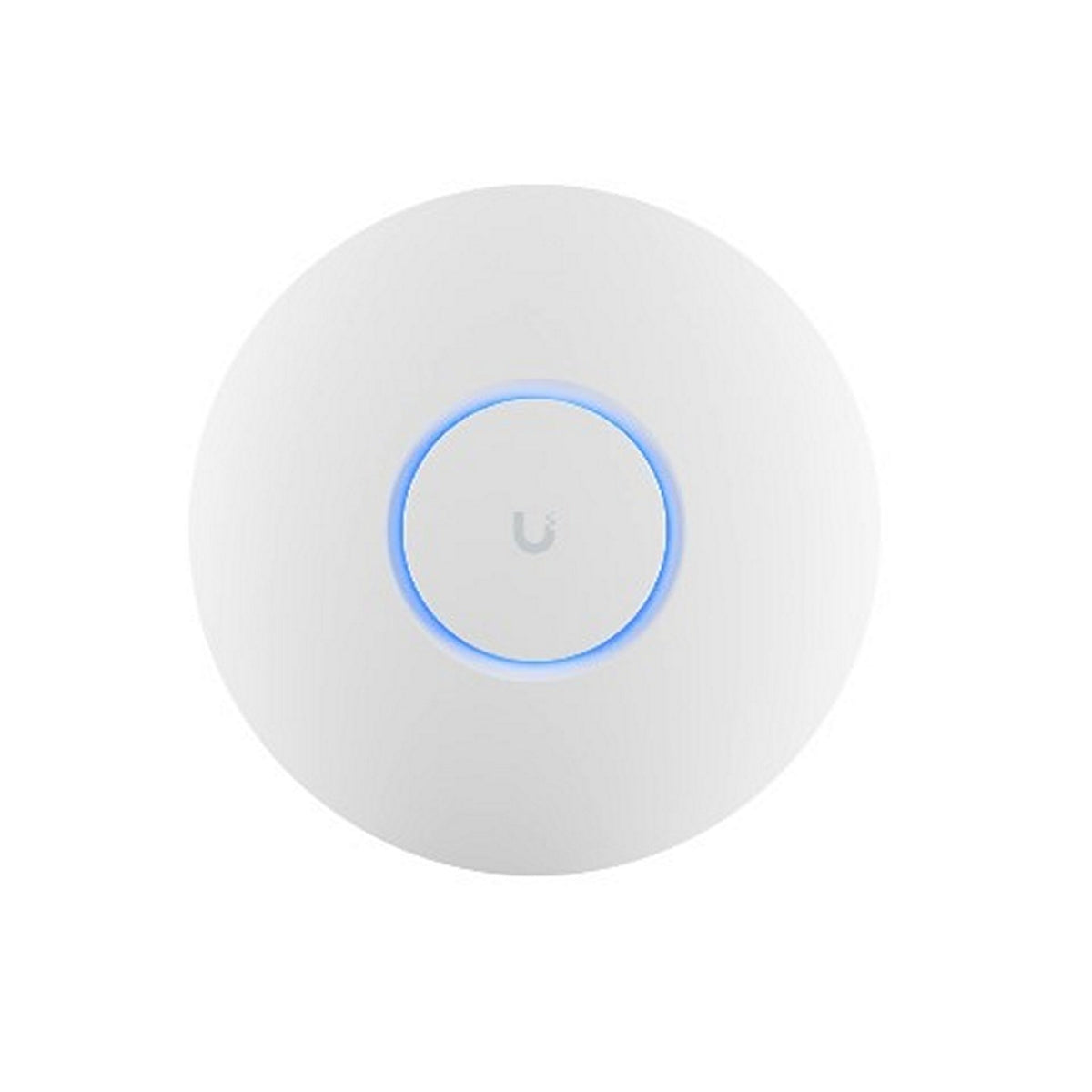

Ubiquiti UniFi UAP-AC-Lite Access Point Wall or Ceiling Mount

Ubiquiti UniFi UAP-AC-Lite Access Point

The Ubiquiti UniFi UAP-AC-Lite is a sleek and compact Wi-Fi access point that delivers high-performance wireless connectivity for homes and small businesses. It supports the latest Wi-Fi 5 technology and offers exceptional coverage of up to 1,250 square feet. With Power over Ethernet (PoE) and a simple setup via the UniFi Controller, this access point provides reliable wireless access to over 250 devices, ideal for high-density environments.

Key Features:

• Wi-Fi 5, 2.4 GHz and 5 GHz support
• 450 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
• Simple PoE setup for flexible installation
• Supports 250+ concurrent clients
• Advanced QoS and VLAN support for optimized traffic

Technical Specifications:

Dimensions: Ø6.3 x 1.2" (Ø160 x 31.45 mm)
Weight: 6 oz (Without mount) / 6.5 oz (With mount)
Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet
Power Method: PoE, Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power Supply: UniFi PoE switch, 24V, 0.5A Gigabit PoE adapter (sold separately)
Max. Power Consumption: 6.5W
Max. TX Power: 2.4 GHz 20 dBm, 5 GHz 20 dBm
MIMO: 2.4 GHz 2 x 2 (DL MU-MIMO), 5 GHz 2 x 2 (DL MU-MIMO)
Max. Data Rate: 2.4 GHz 450 Mbps (BW40), 5 GHz 867 Mbps (BW80)
Antenna Gain: 2.4 GHz 3 dBi, 5 GHz 3 dBi
Button: Factory reset
Mounting: Wall, ceiling (Included)
Ambient Operating Temperature: -10 to 70°C (14 to 158°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Wi-Fi Standards: 802.11 a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Concurrent Clients: 250+
