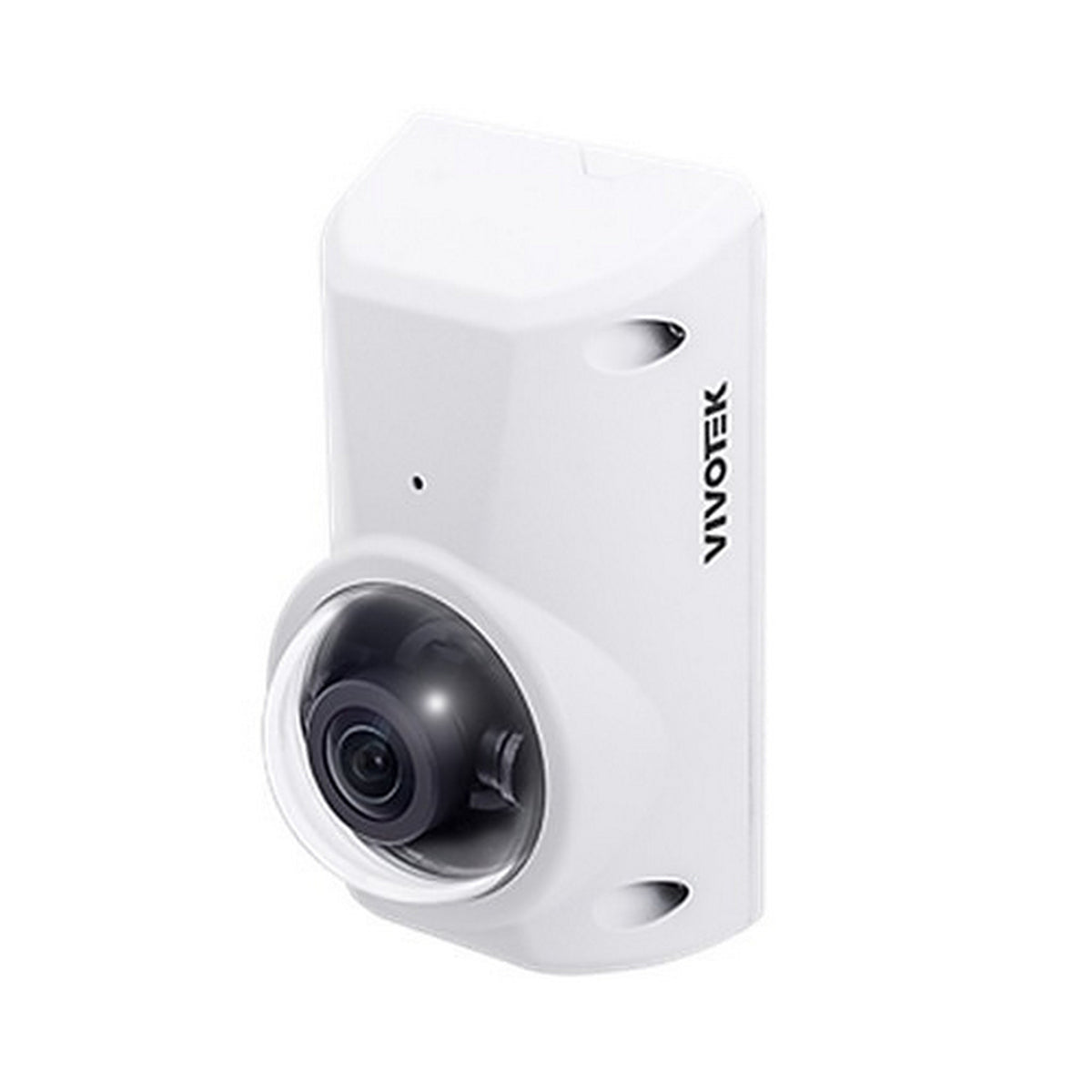

VIVOTEK CC9390-HV 8MP 180-Degree IR Panoramic AI Network Camera
VIVOTEK CC9390-HV 8MP 180-Degree IR Panoramic AI Network Camera The VIVOTEK CC9390-HV is a high-performance panoramic network camera featuring 8MP resolution and a 180° horizontal field of view. Designed for wide-area surveillance, it delivers clear imagery day and night with WDR Pro,...
PRODUCT DETAILS
Everything you need to know.
VIVOTEK CC9390-HV 8MP 180-Degree IR Panoramic AI Network Camera
The VIVOTEK CC9390-HV is a high-performance panoramic network camera featuring 8MP resolution and a 180° horizontal field of view. Designed for wide-area surveillance, it delivers clear imagery day and night with WDR Pro, Smart IR, and ePTZ digital zoom.
Built to endure harsh environments, the CC9390-HV is IP66 and IK10 rated and supports advanced AI-based analytics such as people and vehicle detection, path tracking, and more. Ideal for both outdoor and indoor panoramic monitoring applications.
Key Features
- Sensor: 1/1.8" CMOS, 8MP (3840×2160)
- Lens: 2.53 mm fixed-focal, F2.4, 180° H / 103° V / 180° D
- WDR: WDR Pro, 120 dB
- Low Light: 0.08 lux (Color), 0.005 lux (B/W)
- IR: Built-in Smart IR (up to 20m)
- Zoom: ePTZ with 48x digital zoom (12x built-in)
- Streaming: H.265, H.264, MJPEG; up to 30 fps at 8MP
- Audio: One-way audio, built-in mic (5 m range)
- Storage: microSD/SDHC/SDXC (up to 1TB), NAS
- Durability: IP66 weatherproof, IK10 vandal-proof
- Power: IEEE 802.3af PoE Class 0 (max. 9.96W)
- AI: People/vehicle detection, facial recognition, smart motion detection
Technical Specs
- Memory: 8 GB Flash, 2 GB RAM
- Field of View: ±20° Tilt
- Video Profiles: Up to 3 streams / 8 profiles
- Dimensions: 115 x 65 x 59 mm
- Weight: 338 g
AI Analytics
- Deep learning hardware accelerator
- Smart VCA: intrusion, line crossing, crowd detection, object tracking
- People/vehicle detection and classification
- Attribute extraction and path analysis
